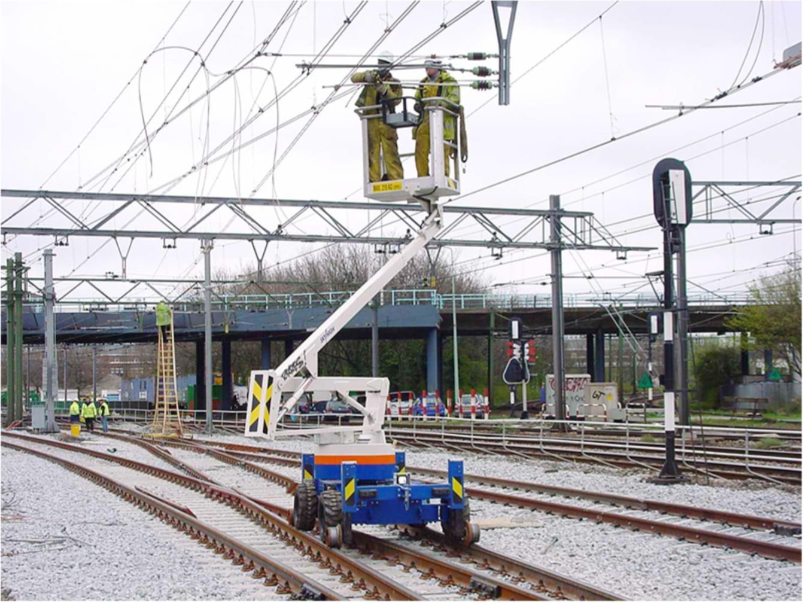

ST120 Rail Hoogwerker
The most advanced hybrid electric rail boom lift designed for railway infrastructure projects
Key Features
- Hybrid electric & diesel power options
- 12m maximum working height
- 360° continuous rotation
- 215kg platform capacity
- Rail-mounted for track work
- Remote control operation available
- Advanced safety systems
- Low noise operation in electric mode
Technical Specifications
Working Height
12.0 m
Horizontal Reach
8.5 m
Platform Size
1.8 x 0.75 m
Transport Length
6.5 m
Transport Width
2.3 m
Transport Height
2.5 m
Total Weight
3,300 kg
Platform Capacity
215kg
Slew Speed
0.5 rpm
Drive Speed
7.5 km/h
Gradeability
25%
Rotation
360° continuous
Turntable Rotation
180°
Platform Rotation
160°
Operating Temp
-20°C to +40°C
Wind Resistance
12.5 m/s
Electric Motor
48V DC
Battery Capacity
400 Ah
Electric Runtime
8 hours
Charging Time
6-8 hours
Diesel Engine
Kubota 25 HP
Fuel Tank
50 liters
Diesel Runtime
10 hours
Hybrid System
Automatic switching
Perfect For
Hybrid Electric
Eco-friendly operation with both electric and diesel options for maximum flexibility
Safety First
Latest safety features and certified operators for worry-free operation
Short-term Rental
Flexible rental periods tailored to your project needs - daily, weekly, or monthly
Technical Support
24/7 technical assistance and maintenance included with every rental
High Performance
Powerful reach up to 12m working height with exceptional stability
Proven Experience
Over 8 years of expertise in specialized boom lift solutions
Why Choose Railprolift?
Get a free quote today and discover how our rail boom lifts can make your project safer and more efficient
